Bulkhead Surround - VW Crafter '06-'16/Mercedes Sprinter '06-'17

CRUX-0021
£195.00
In stock
1
Product Details

The Bulkhead Surround creates a neat transition between the cab and the rear of the van and is specific to each van type. Manufactured from lightweight & rigid PVC construction board with aluminium B-pillar surround and lined in a choice of finishes, it is securely fixed to the internal ribs using the mounting points from the OEM bulkhead. It’s supplied in multiple pieces with four different options available to suit your layout.

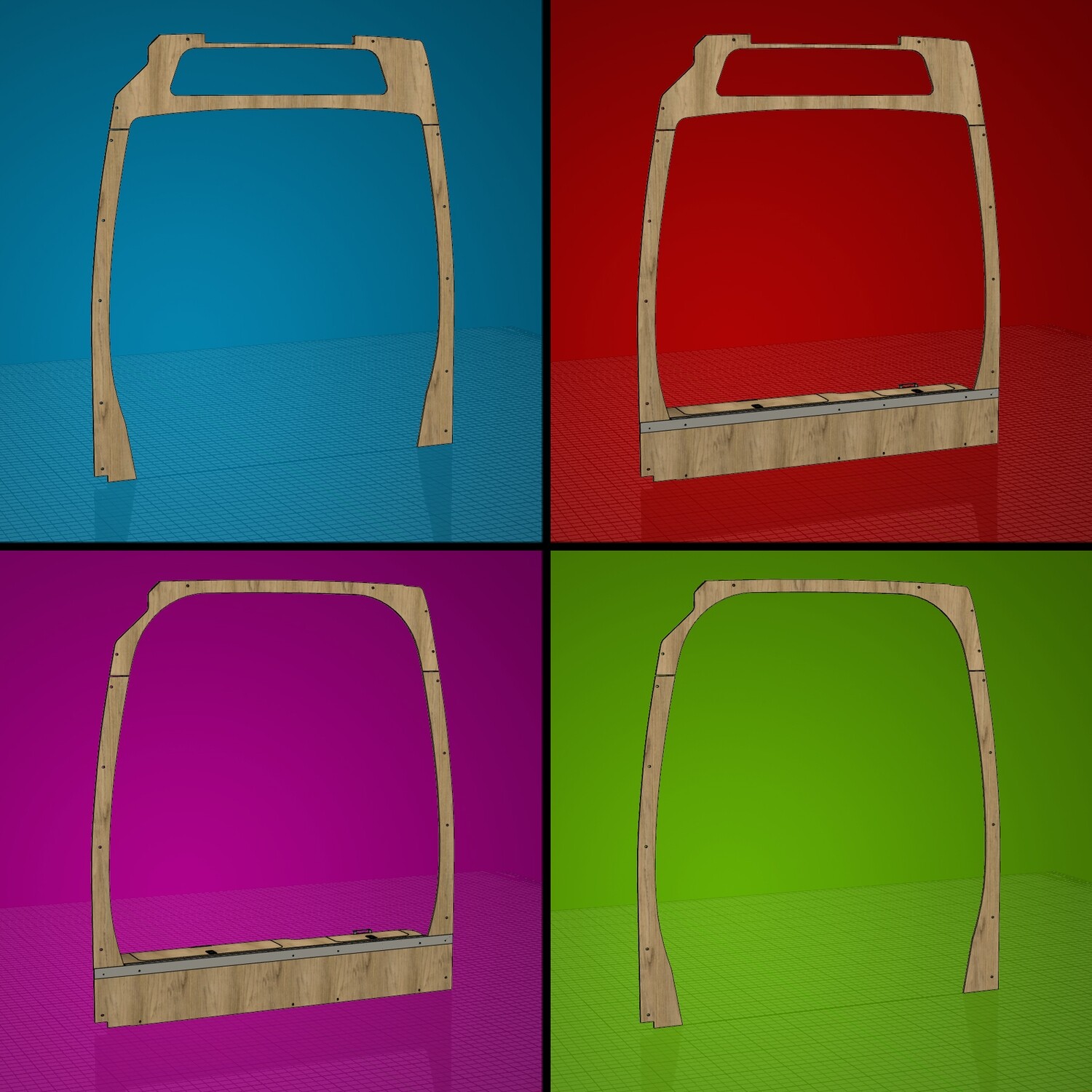

Shelf Top & Storage Box (Red) - for maximum storage space. The top portion of the Bulkhead Surround is filled in and features a cutout to gain access to the storage compartment above the cab (see our Cab Headliner Shelves). Short side B-pillar surrounds and our full width storage compartment at the base, with two cubby holes with removable lids. Ideal if you have kept the double passenger seat and can be used with swivel seats.

Shelf Top & Open Base (Blue) - for above cab storage with a walk through floorplan. The top portion of the Bulkhead Surround is filled in and features a cutout to gain access to the storage compartment above the cab (see our Cab Headliner Shelves). Long side B-pillar surrounds go down to the floor, allowing the floor of the van to extend in the cab, for walk through access and ideally setup to work with two single swivel seats.

Open Top & Storage Base (Pink) - full height cab with storage compartments. Retaining the full height of the original headliner, the surround fills the gap neatly between the front and rear of the van. Short side B-pillar surrounds and our full width storage compartment at the base, with two cubby holes with removable lids. Ideal if you have kept the double passenger seat and can be used with swivel seats.

Open Top & Open Base (Green) - for maximum walk through access. Retaining the full height of the original headliner, the surround fills the gap neatly between the front and rear of the van. Long side B-pillar surrounds go down to the floor, allowing the floor of the van to extend in the cab, for walk through access and ideally setup to work with two single swivel seats.

The lightweight PVC construction board has a clean white appearance and non-porous edge. This material has a smooth appearance and can be used as manufactured, lined with automotive carpet or vinyl.

An optional L-Track cargo rail can be fitted to the powdercoated steel angle, increasing tie down capacity in a really useful location when fitted to the storage base.

Please note; all kits are designed to work with a finished floor height that is 21mm above the top of the metal floor ribs. Some vertical adjustability has been designed into the kit +/-2mm and if your finished floor height is higher, the bottom edge of each panel can be easily trimmed.


Product Specs

  • CNC profiled 10mm lightweight PVC construction with aluminium returns, lined in a variety of finishes.
  • Storage compartment with aluminium partitions, securely riveted to seat boxes with a structural steel cross brace at rear.
  • Can be used in conjunction with the Cab Headliner Shelf.
  • Stainless fasteners provided for fixing to the OEM mounting locations.
  • Options for various layouts.
  • Approx. install time - 30-120 mins.


What's in the box?

  • Multiple 10mm lightweight construction board profiles for different kit options.
  • Long or short B-pillar surrounds.
  • Metal brackets.
  • Fasteners.
  • Fitting Instructions.


Options

Four layouts available as listed above, supplied as a:

  • DIY install kit
  • Fully lined kit (Anthracite automotive carpet)
  • Fully lined kit (Silver automotive carpet)


Van Fitment

  • VW Crafter ‘07-’16 & Mercedes Sprinter ‘06-'17
