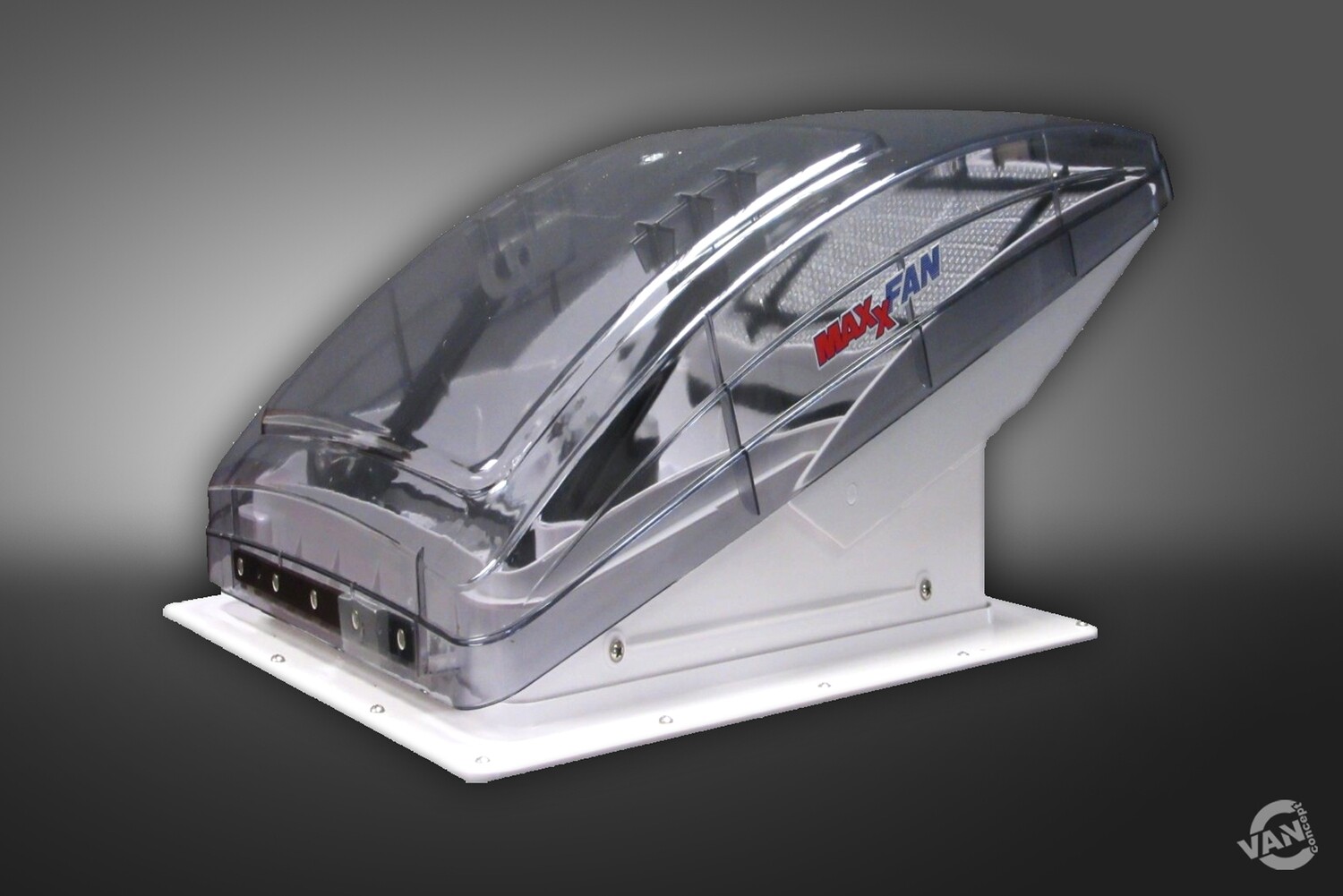

The Maxxair Maxxfan Deluxe Vent Fan With Remote has a built-in rain cover to protect your campervans interior while allowing the cool air in. No need to stretch to reach the ceiling with the new remote control that opens and closes the vent from the palm of your hand. Features a powerful 10 speed fan motor, thermostat, air intake and exhaust.
We can supply the Maxxfan vent in either clear, tint or white, with or without a MaxxShade Blind and in our continuing efforts to support the self builder, we can offer it with a Lightweight Plywood Mounting frame.
Current mounting frame fitments are: VW Crafter '06-17 & Mercedes Sprinter '07-'18
Product Specs
- Control the Maxxfan at the ceiling unit or by remote.
- Fits standard 400 x 400mm roof openings.
- Fan can run with lid closed (ceiling fan mode).
- Moves over 900 cu.ft. of air per minute.
- Remote Keypad controls fan speed, thermostat, air intake and exhaust functions.
- Option to manually open and close the vent lid by simply rotating the knob at the fan.
- The locking knob ensures the vent lid stays fully open or closed.
- Features a powerful 10-speed fan motor.
- All mounting screws and hardware included.
- Drawing 4.0 amps at the highest speed down to 0.2 amps on low speed.
- 2-Year Limited Warranty with Lifetime Limited Warranty on lid.
- Approx. install time - 2-3 hours.
The MaxxFan is a one-of-a kind ventilation system that protects your campervans interior at all times in any weather - rain or shine. It brings in fresh air and removes hot musty air along with odors. Opens and closes automatically with remote or like most standard roof vents using a manual knob located at the ceiling unit. Easy to remove interior insect screen, simply rotate four retaining knobs to remove screen for cleaning, no tools required. Features a powerful, fuse protected, sealed ball bearing 12 volt fan motor with 12" 10 bladed fan for quiet operation.
Additional Info
- MaxxFan, a new, one-of-a kind ventilator system that protects your campervan interior - always - in any weather - rain or shine
- Brings in fresh air and removes hot musty air and odors
- A complete all in one system that fits standard 400 x 400mm campervan roof openings
- Opens and closes like most standard roof vents using a manual knob located at the ceiling
- Easy to remove interior insect screen, simply rotate four retaining knobs to remove for cleaning, no tools required
- Features a powerful, fuse protected, sealed ball bearing, 12 volt fan motor and a 12 inch, 10 bladed fan
- Provides over 900 CFM of airflow on High using 4.4 amps, 730 CFM at 2.5 amps and 500 CFM on Low at 1.4 amps
- All mounting screws and hardware included. (Roof sealant must be purchased separately)
- Available in White, Tint/Clear or Smoke. (please select upon ordering).
- The white unit lets little daylight through (ideal for bedrooms).
- The smoke unit is more translucent allowing some daylight through.
MaxxShade Blind
The Maxxshade is the perfect solution for blocking out sunlight and UV rays to keep you cool and comfortable - day and night.
- Fully retractable, spring loaded roller shade with secure 'snap-lock' closure.
- The shade material has a reflective backing to block light and reflect heat.
- Will not interfere with the normal operation of the roof vent or powered ventilation fan.
- Easy installation using existing trim.
Options
- Clear/Smoke, Dark Tint or White lid covers.
- Lightweight Plywood mounting frame for specific fitment to VW Crafter '06-17 & Mercedes Sprinter '07-'18.
- The Maxxshade Blind.
Van Fitment
- Any van.
