Lazer Lamp 'CANNY' Canbus LED Light Interface (Direct Connect)
Product Details

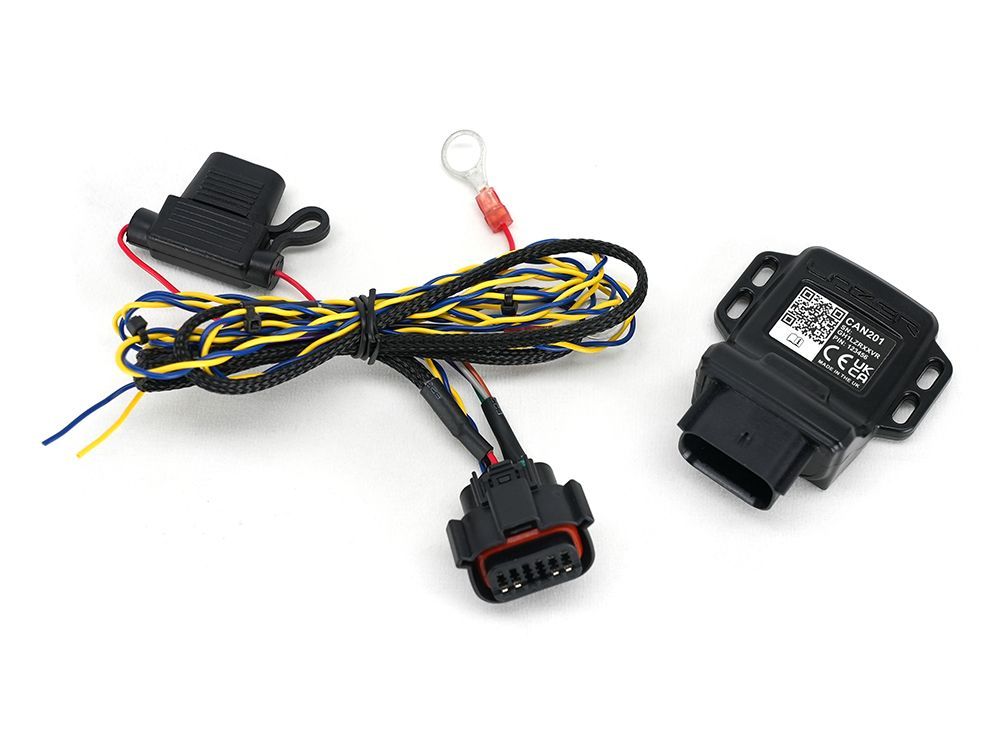

Canny is a CAN interface, developed by Lazer Lamps, that enables installation of auxiliary lights for selected vehicles using CAN communication systems, where it is otherwise not possible to pick-up 12V lighting signals at the back of the vehicle headlamp for example. Comprising a Canny Dongle, plus wiring loom, and supported by a dedicated app (CANNY.LZR), the system benefits from being able to mount within your vehicle’s engine bay for faster and easier installation, or inside the vehicle. Over-the-air Bluetooth synchronisation and updates furthers the systems ease of use and speed of installation.
The Dongle comprises an automotive standard Molex connector, ensuring a completely watertight solution, to IP68. Integrated design features and included cable ties facilitate mounting of the unit. Locating the device within the engine bay is preferable for ease of install, but will be dependent on the CAN Hi / CAN Lo wires pick-up location on each vehicle.
Connection to the vehicle CAN wires is made via the supplied wiring loom, with the blue (CAN Hi) and yellow (CAN Lo) wires supplied with automotive grade heat-seal crimps for completing watertight connections. The supplied wiring loom also includes a fused battery positive connection, and ground wire. Additionally 4 output wires, each programable to respond to different inputs, whether: high beam, position light, ignition, reverse etc., and compatible with any of our vehicle wiring kits (where the required output is >1Amp).
Activation, synchronisation, and ongoing updates of your Canny Dongle are achieved through the app. Having gained full access via the unique serial number and PIN on your device, users can then access installation guides for their vehicle, before pairing with the device and assigning and testing the different lighting functions. Updates, for example, following a vehicle manufacturer making changes to the CAN ‘recipes’, can also be completed via Bluetooth.
- IP68 Waterproof CANNY dongle with Molex connector terminal
- Suitable for both engine-bay or in-car mounting
- Connects to vehicle CAN wires (locations of CAN wires and connection methods supplied via vehicle specific instructions, downloadable through APP, after purchase)
- Activates up to 4 x different output (e.g. High Beam, Position Light, Reverse, Ignition)
- Bluetooth (over the air) updates via CANNY app – available on Android and iOS
- Compatible with vehicle-side wiring harness kits (sold separately)
- Fast and user-friendly installation procedure
